Y-Type Strainers

Y-type strainers that protect pumps, meters and valves from pipeline debris.

Browse Cryogenic Valves

Need the right valve for your duty?

Send the medium, DN, PN or Class, temperature and connection details. We return a selection proposal, the manufacturer's datasheet, a dimensional drawing, and a quotation with deviations listed against your specification.

Contact

Or email us directly: sales@kingnatrading.com

A Y-strainer is the cheapest insurance on a line: a 304 screen in the branch catches weld slag, scale and grit before it reaches a pump, a meter or a control valve, and the blow-down cap lets it be flushed without breaking the joint. Two things are usually got wrong. It is sized on the pipe instead of on the flow, so the pressure drop across a clean screen is already too high; and nobody leaves the space to lift the screen out, so it is never cleaned. DN15–DN400, PN10/16, epoxy ductile iron, flanged or threaded.

General Specifications

Size RangeDN15 – DN400
ModelsGL41H / DIN F1
Pressure RatingPN10 / PN16 (PN25 on request)
End ConnectionFlanged / threaded
Flange DrillingBS EN 1092-2 (DIN 2501)
Screen304 stainless steel mesh
ServiceWater supply, pump protection, HVAC, industrial lines
Max. Working Temperature0 – 80 °C

Materials & Coating

BodyDuctile iron, epoxy coated
CoverDuctile iron, anti-wear design
Screen304 stainless steel
GasketEPDM / PTFE on request

Design Features

Why choose itProtects pumps, meters and control valves from debris

Applications

Water supply lines Pump protection HVAC systems Industrial pipelines

More from this series

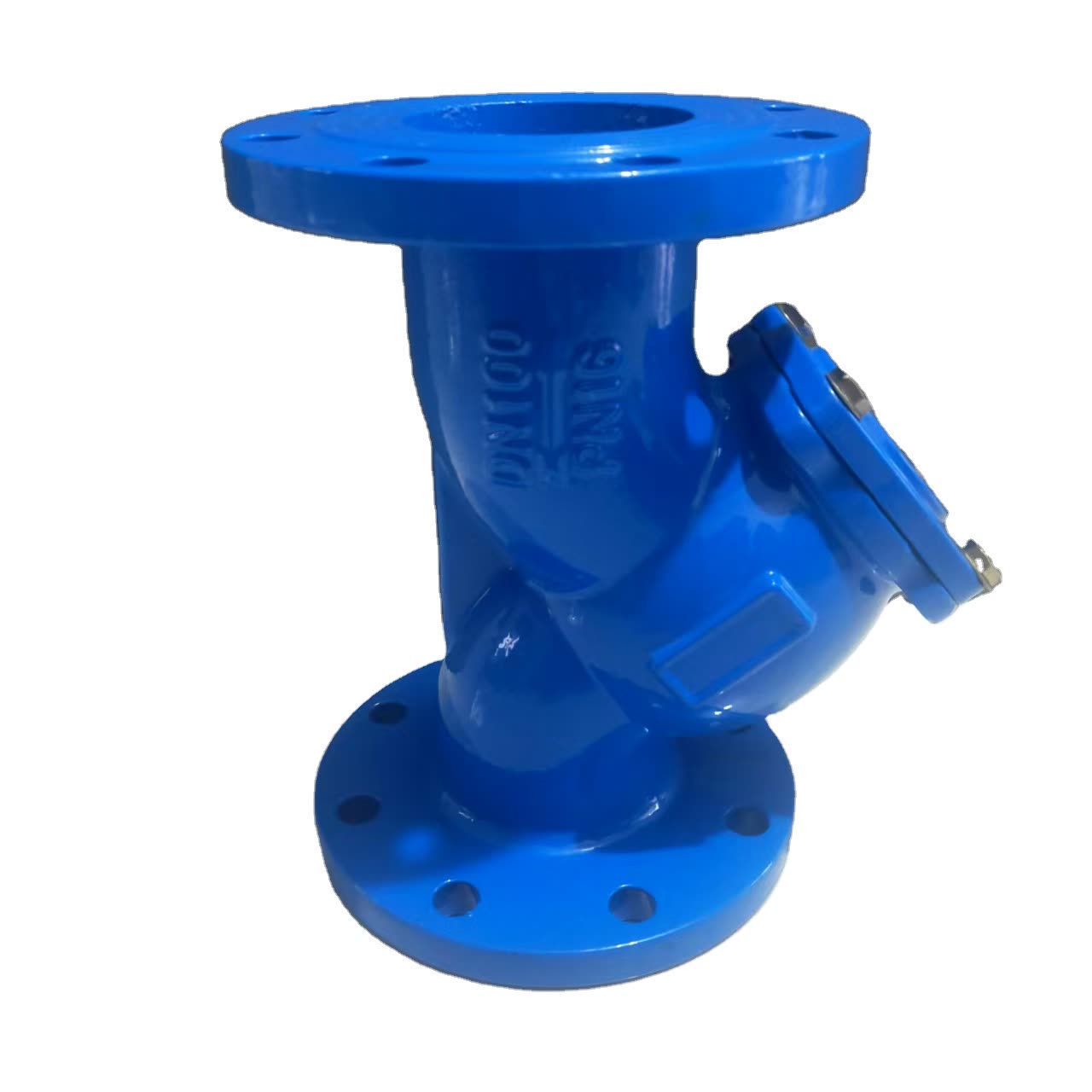

Y-Type Strainers — Three-quarter view of a blue flanged industrial body on a white background
